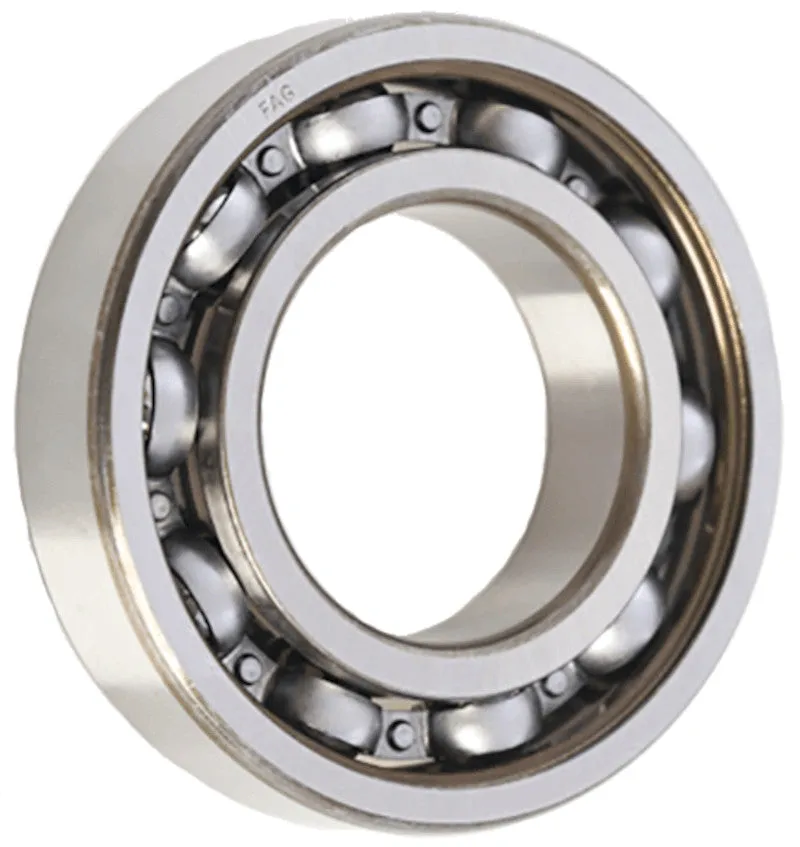

Single row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. They are of a simple design, robust in operation and easy to maintain. They are available in open and sealed designs. Due to the raceway geometry and the use of balls, deep groove ball bearings can support axial forces in both directions as well as radial forces.

Deep groove ball bearings of Generation C were specially developed with a focus on low noise levels and low frictional torque. They are particularly suitable, for example, for use in electrical machinery, ventilators, washing machines and power tools.

Principal Dimensions
Inside diameter: 45mm
Outside diameter: 75mm
Width: 16mm

Basic Load Ratings
Dynamic: 22.1kn
Static: 14.6kn

Speed Ratings
Reference speed: 20000 r/min
Limiting speed: 12000 r/min
